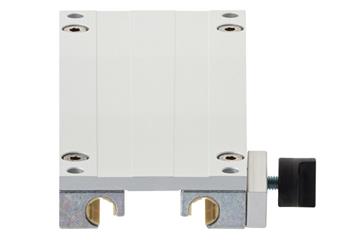

drylin® W complete slede WWC

Very easy assembly, no alignment
With the WWC mono-slide carriage, the easy assembly of the drylin W carriages is made even easier. Due to anodised aluminium carriages, there are no individual pillow blocks.

Tech up:

• Extremely fast assembly of drylin® W linear carriage on drylin® W double rails
• Monobloc made of aluminium for robust handling
• Suitable for drylin® W profile rail WSQ-06-60
• Sliding elements made from iglidur® J for long-lasting operation
• In three lengths, available ready to install: 60/80/100mm

Cost down:

• Save installation time with a ready-to-install design
• No mounting or alignment
• Save storage space – one component instead of nine (for standard linear carriages)
• Reduced design effort with PDF and CAD file available in the online shop

Proof:

• 12% less installation height than standard
• Corrosion-resistant thanks to clear anodising
• Tested: WWC carriage, installation size 06, load 80N, acceleration 3m/s², rail length 2,000mm, running performance 5,000km or 2.5 million double strokes of 1,000mm each

Sustainability:

• Lubrication-free operation
• Maintenance-free due to self-lubricating high-performance polymers from igus®
• Lightweight components such as polymer and aluminium
