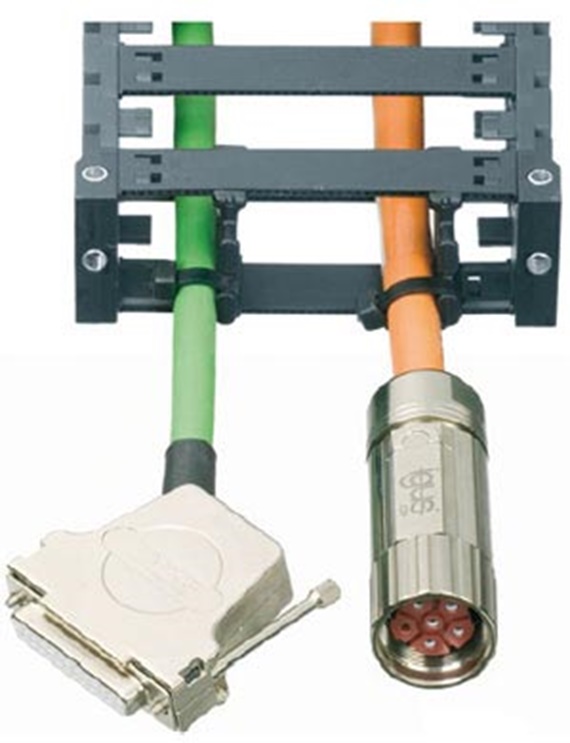

Strain relief separator

Separator with integrated strain relief teeth

For use on the first or last chain link

For low space requirements

Accessory for igus® e-chain system®

Easy to assemble, completely without screws

The number "n" depends on the selection of the cables (diameter, type) and available space

Part no. ZE separator	For series	No. of teeth	foot width	width of crossbar	Minimum distance	Max. cable ø

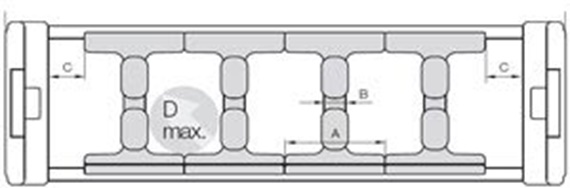

			Dimension A [in.]	Dimension B [in.]	Dimension C le / ri [in.]	Dimension D [in.]

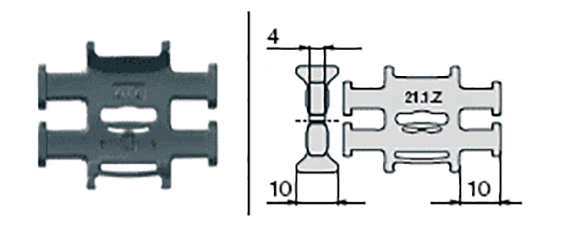

21-1-Z	1400/1500	2	.39	.16	-	.24	Inquiry

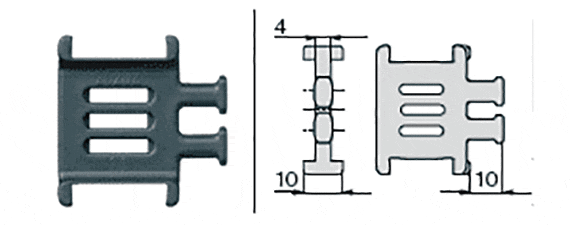

2020-Z	2400/2500	2	.39	.16	-	.24	Inquiry

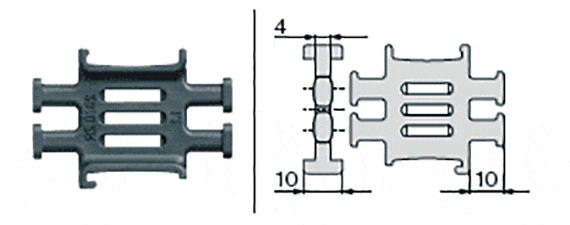

2020-.ZR	2450/2480	2	.39	.16	-	.24	Inquiry

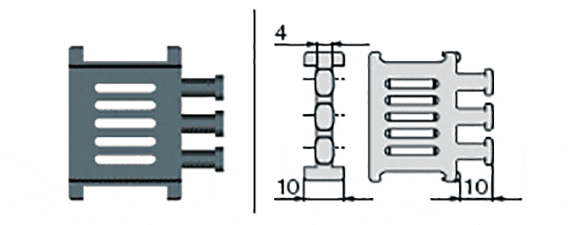

262-Z	2600/2700	3	.39	.16	-	.24	Inquiry

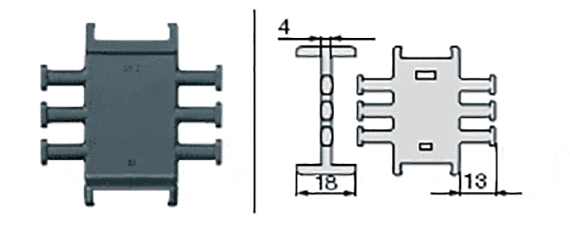

301-Z	3400/3500	3	.70	.16	-	.55	Inquiriy

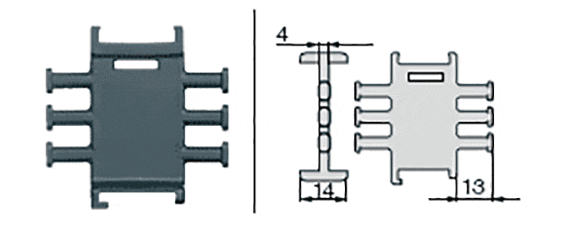

34501-Z	3450/3800	3	.55	.16	-	.39	Inquiry

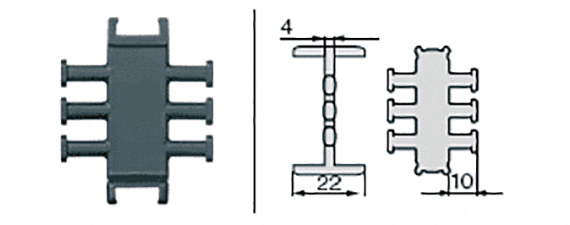

1585-01-Z	R157/R158	3	.87	.16	-	.71	Inquiry

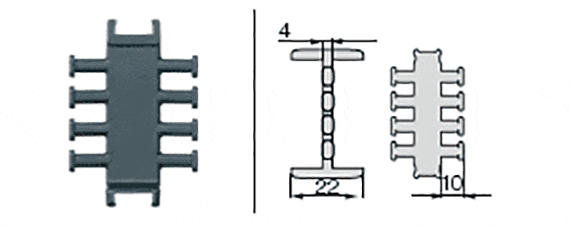

1685-01-Z	R167/R168	4	.87	.16	-	.71	Inquiry

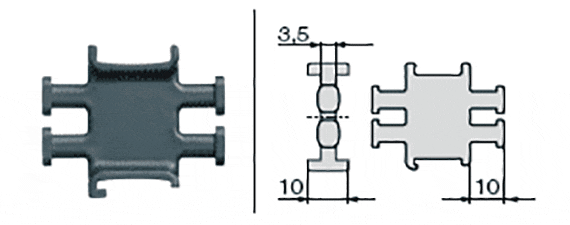

481-ZR	R48	2	.39	.14	.39	.26	Inquiry
T2103-Z	210	2	.31	.16	.51	.16	Inquiry

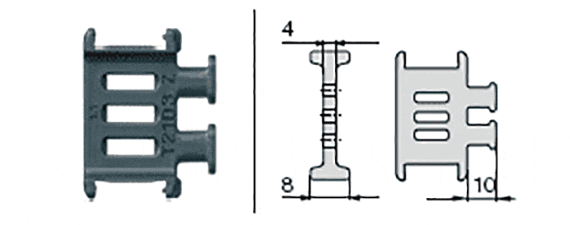

T2103-Z	E4-21	2	.31	.16	.51	.16	Inquiry

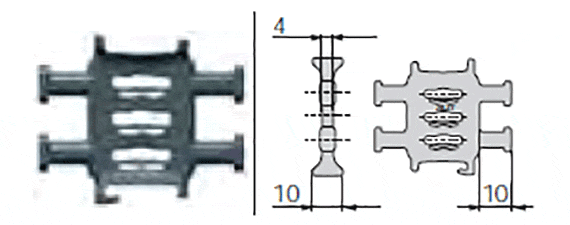

28-Z	E4-28	2	.39	.16	-	.31	Inquiry

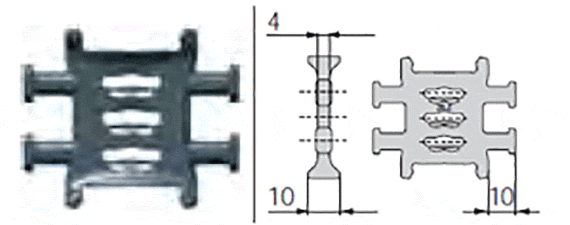

28-ZT	R4-28	2	.39	.16	-	.31	Inquiry

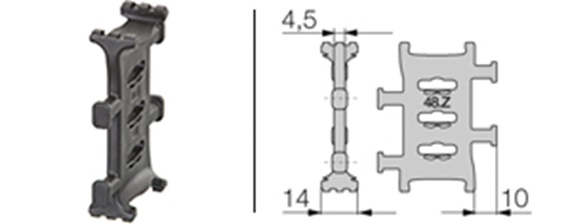

48-Z	E4-48L	2	.55	.18	.31	.79	Inquiry

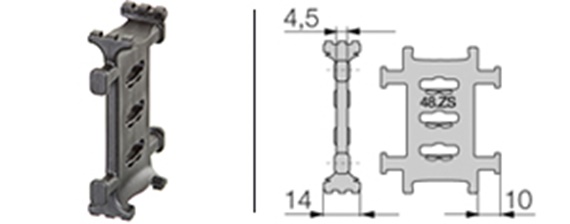

48-ZS	E4-48L	2	.55	.18	.31	.79	Inquiry

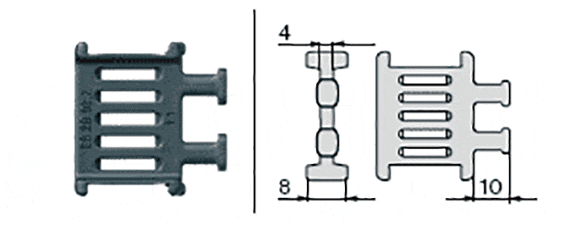

E6-29-02-Z	E6-29/T3-29	2	.31	.16	.47	.16	Inquiry

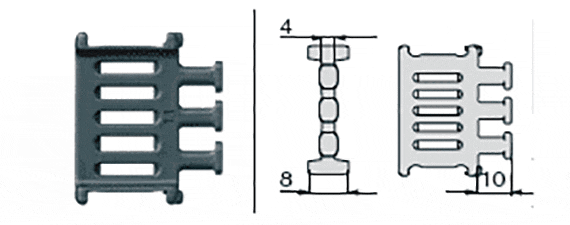

E6-35-02-Z	E6-35	3	.31	.16	.47	.16	Inquiry

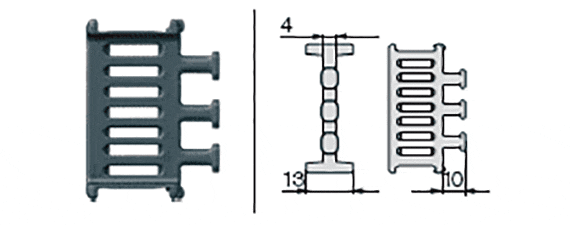

E6-40-02-Z	E6-40	3	.51	.16	-	.31	Inquiry

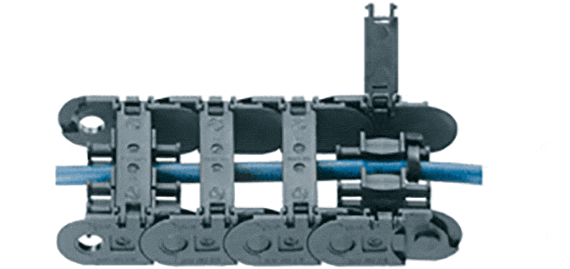

Strain relief separators are mounted on the first or last chain link. For an "in between strain relief" they can also be mounted alternatively on the e-chain®.
