iglide® piston rings - just slip it on!

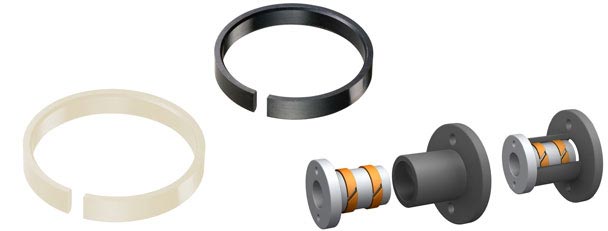

Replace die-cut rings - for example - with an iglide® piston ring quickly and easily. igus® offers piston rings in various iglide® materials as a slip-in solution for different application parameters.
Advantages
Easy to assemble
Low cost
More wear resistant than PTFE rings or other composite rings
Higher load capacity
Defined dimensions
No rough/jagged edges
No special jigs/fixtures required
Materials: Piston rings can be made in most of our iglide® materials
Applications:Valves, actuators, gas struts, fittings, pneumatic hydraulic cylinders
Industries:Fluid power, food technology, medical, instrumentation, etc.
| Part Number | Inner diameter |
Outer diameter |
Piston ring Width |
Gap width |
Gap Tolerance |
Split angel |
||
|---|---|---|---|---|---|---|---|---|
| d1 [mm] |
d2 [mm] |
b1;(h13) | ±mm | [°] | ||||
| JPRM-1012-054 | 10 | 12 | 5.4 | 2.5 | 0.5 | 20 | Upon request |  |
| JPRM-1214-054 | 12 | 14 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-1416-054 | 14 | 16 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-1618-054 | 16 | 18 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-2023-054 | 20 | 23 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-2528-054 | 25 | 28 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-3034-054 | 30 | 34 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-3539-054 | 35 | 39 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-4044-054 | 40 | 44 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-4550-054 | 45 | 50 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-5055-054 | 50 | 55 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-6065-054 | 60 | 65 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
| JPRM-7075-054 | 70 | 75 | 5.4 | 2.5 | 0.5 | 20 | Upon request | |
