Assembly Instructions for Energy Chain® Triflex® R TRC

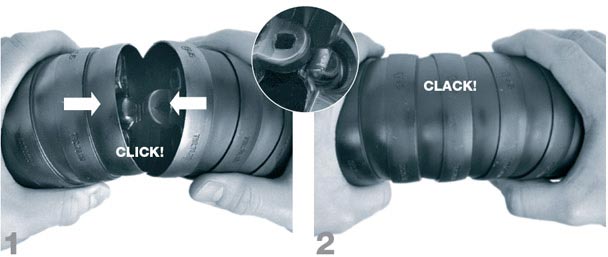

Hold two pieces together at inner radius and move socket up against the ball's wedged end

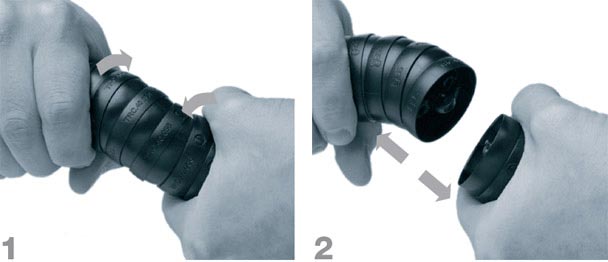

Bend Triflex® into its radius and twist apart, counter-clockwise

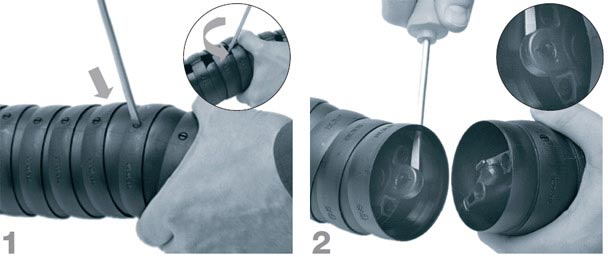

Insert screw driver into the opening of the socket from the top. Then twist apart, counter-clockwise.gegen den Uhrzeigersinn aufhebeln

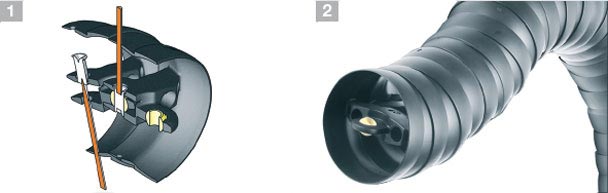

Connector principle = ball head in fork (similar to proven ball/socket principle) Assembling / dismantling for large sizes. Quicker to assemble with less force used
